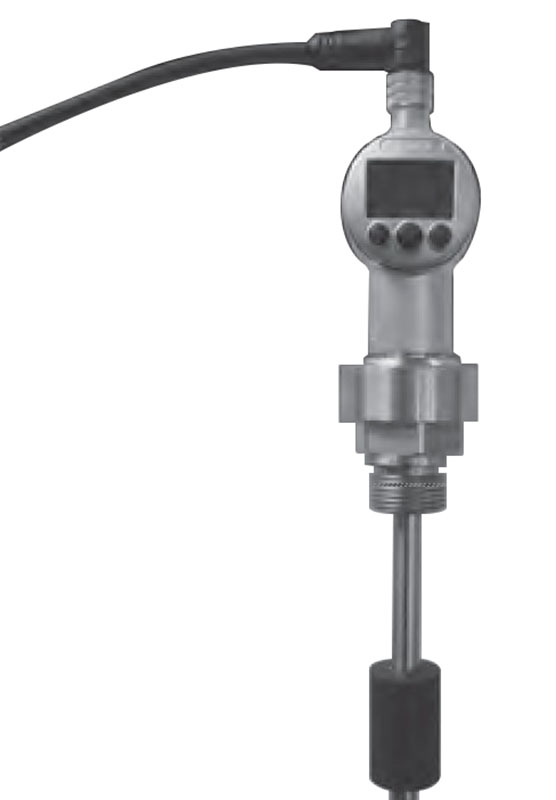

The HNS 3000 is an electronic level switch with integrated display. The float-based sensor for high-precision analogue monitoring of the fluid level has 1, 2 or 4 switching outputs and an analogue output signal is available as an option. In addition to the standard minimum and maximum switching signals, with the 4 switching output version it is possible to set additional warning signals to prevent problems such as tank overflow or aeration of the pump. The main applications of the HNs 3000 are primarily in hydraulics, e.g. for fluid level monitoring of a tank.
Unit of Measure

Specifications

Type

N/A Float Based Level Switch

Style

N/A Level Switch

Connection Type

N/A G 3/4 in.

Medium

N/A Mineral Oil Based Hydraulic Fluids

Weight

N/A 0.50 kg1.1 lb

Sensor Material

N/A Stainless Steel (SS)/Polypropylene in

Ambient Temperature [Min]

N/A -25 ºC-13 ºF

Ambient Temperature [Max]

N/A 80 ºC176 ºF

Mounting Type

N/A Tank Mounted

Operating Temperature [Min]

N/A -25 ºC-13 ºF

Operating Temperature [Max]

N/A 120 ºC248 ºF

Housing Material

N/A Polypropylene

Connection Size

N/A G 3/4 in.

Output Signal

N/A 4 to 20 mA

Wetted Material

N/A Stainless Steel (SS)/Polypropylene

Electrical Connection

N/A M12 8 Pole

Power Supply

N/A 18 to 35 VDC

Interface

N/A 4 Digit LED, 7 Segment, Red

Operating Pressure [Max]

N/A 3 bar44 psi

Accuracy

N/A ±1%

Vibration Resistance

N/A 2 g

Communication

N/A Pulse

Sensor Type

N/A Analog

Degree of Protection

N/A IP67

Shock Resistance

N/A 20 g

Dimensions

Length

N/A 14.76 in375 mm

Width

N/A 1.73 in44 mm

Height

N/A 4.92 in125 mm

Length [Inactive]

N/A 9.8 in250 mm
