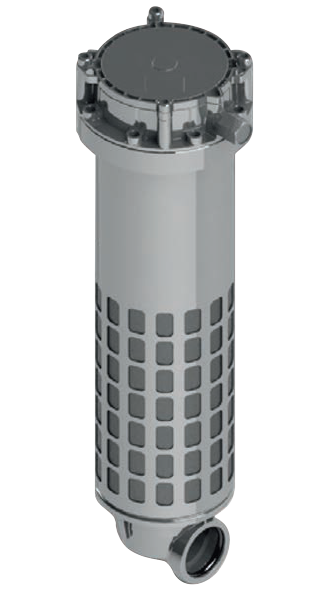

• Return Line Filter BRT
Features and Benefits
  • Filer is mounted in the tank and flow comes to it from a pipe connection below it or from the side
  • Optimal flow conditions created by flow from beneath guaranteeing optimal air separation, even tank mixing, and long element service intervals
  • Patented de-aeration windows around the housing offer superior air bubble coalescence in a 360 degree discharge
  • Quality Protected Inside-Out Flow Element Design
Part of Schroeder Industries’ 2030 Initiative

Modify Configuration

Reset Cancel View Results
Item #
Item #
Disclaimer
Please click this link to see Terms and conditions policy.
Filter Series
Element Length 1
  • 2RB
  • 3RB
  • 4RB
  • 6RB
Media 2
Micron Rating
  • 10: 10µ (Z Media)
  • 25: 25µ (Z Media)
Seals
  • Buna
  • V: Viton®
Inlet Porting
  • 1: Bottom Inlet
  • 2: Side Inlet
Indicator
  • None
  • VA: Visual/Electrical
  • VE: Electrical
  • VO: Visual Indicator
  • 1 Element code can also be used to build a replacement element.
  • 2 Other media is available upon request.
