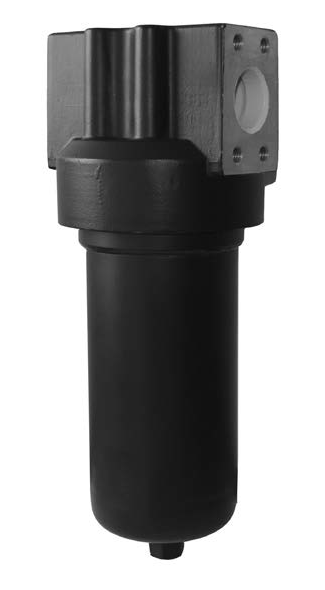

• Return Line Filter with Threaded Bowl GKL3
Features and Benefits
  • Threaded bowl allows for easier removal and facilitates element changes
  • Available with KG-size elements
  • Available with 1 1/2" and 2" porting
  • Offered in pipe, SAE straight thread, ISO 228, and flange porting
  • Various Dirt Alarm® options
  • Available with NPTF inlet and outlet female test ports
  • Available with housing drain plug

Modify Configuration

Reset Cancel View Results
Item #
Item #
Disclaimer
Please click this link to see Terms and conditions policy.
Filter Series
Bowl Length
  • 1: 9”/18”/27” Bowl with one (1) element
  • 2: 18” Bowl with two (2) 9” elements
  • 3: 27” Bowl with three (3) 9” elements
Element 1
  • KG (9”, 18”, 27” Bowl)
  • KKG (18” Bowl)
  • 27KG (27” Bowl)
Media
  • AS: Anti-Stat Media (Synthetic)
  • E Media (Cellulose)
  • ED: Electric Drive Media
  • W: W Media (water removal)
  • Z: Excellement® Z-Media® (synthetic)
  • ZW: Aqua-Excellement ZW Media
Micron Rating
  • 1: 1µ (Z,ZW Media)
  • 3: 3µ (E,Z,AS,ZW Media)
  • 5: 5µ (Z,AS,ZW Media)
  • 10: 10µ (E,Z,AS,ZW,ED Media)
  • 25: 25µ (E,Z,ZW Media)
Seals
  • Buna
  • V: Viton®
Porting
  • P24: 1-1/2” NPTF
  • P32: 2” NPTF
  • S24: SAE-24
  • S32: SAE-32
  • F24: 1-1/2” SAE 4-bolt flange Code 61
  • B24: ISO 228G-1-1/2”
  • B32: ISO 228 G-2”
Bypass
  • 30 PSI cracking
  • 40: 40 PSI
  • 50: 50 PSI cracking
Indicator
  • None
  • Electrical Indicator
  • Electrical Visual Indicator
  • Visual Indicator
Test Point
  • None
  • L: Two 1/4” NPTF inlet and outlet female test ports
Bowl Drain
  • None
  • DR: 3/8” drain on bottom of housing
  • 1 Element code can also be used to build a replacement element.
