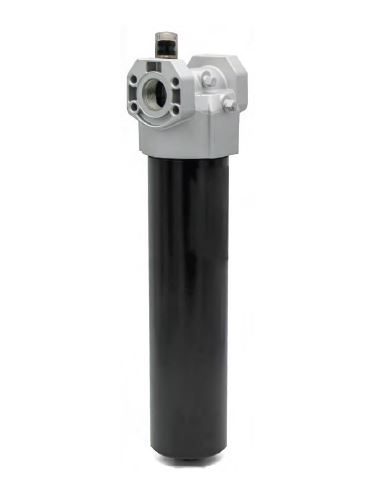

• Meduim Pressure Filter RLT
Features and Benefits
  • Durable, compact design
  • Quick and easy cartridge element changeouts
  • Available in 9" and 14" element lengths
  • Lightweight at 8 pounds
  • Offered in pipe, SAE straight thread, flange and ISO 228 porting
  • Available with NPTF inlet and outlet female test ports
  • Various Dirt Alarm® options
  • Same day shipment model available

Modify Configuration

Reset Cancel View Results
Item #
Item #
Disclaimer
Please click this link to see Terms and conditions policy.
Filter Series
  • RLT
  • RLTN (Non-bypassing: requires V5Z high collapse elements)
Element Length (in)
  • 14
  • 9
Element Size and Media
  • V5Z10: V size 10 µ Excellement® media, 500 psid collapse
  • V5Z25: V size 25 µ Excellement® media, 500 psid collapse
  • V5Z3: V size 3 µ Excellement® media, 500 psid collapse
  • V5Z5: V size 5 µ Excellement® media, 500 psid collapse
  • VZ1: V size 1 µ Excellement® Z-Media® (synthetic)
  • VZ10: V size 10 µ Excellement® Z-Media® (synthetic)
  • VZ25: V size 25 µ Excellement® Z-Media® (synthetic)
  • VZ3: V size 3 µ Excellement® Z-Media® (synthetic)
  • VZ5: V size 5 µ Excellement® Z-Media® (synthetic)
Seal Material
  • Buna N
  • H.5: Skydrol® Compatibility
  • H: EPR
  • V: Viton®
Porting Options
  • B16: ISO 228 G-1"
  • B20: ISO 228 G-1 1⁄4"
  • F20: 1 1⁄4" SAE 4-bolt flange Code 61
  • P16: 1" NPTF
  • P20: 1 1⁄4" NPTF
  • S16: SAE-16
  • S20: SAE-20
Bypass
  • 40 PSI Bypass
  • 50: 50 PSI Bypass
  • 60: 60 PSI Bypass
  • X: Blocked bypass
Indicator
  • None
  • D5: Visual pop-up
  • D8: Visual w/ thermal lockout
  • MS5: Electrical w/ 12 in. 18 gauge 4-conductor cable
  • MS5LCT: Low current MS5T
  • MS5LC: Low current MS5
  • MS5T: MS5 (see above) w/ thermal lockout
  • MS10: Electrical w/ DIN connector (male end only)
  • MS10LC: Low current MS10
  • MS10LCT: Low current MS10T
  • MS10T: MS10 (see above) w/ thermal lockout
  • MS11: Electrical w/ 12 ft. 4-conductor wire
  • MS12: Electrical w/ 5 pin Brad Harrison connector (male end only)
  • MS12LC: Low current MS12
  • MS12LCT: Low current MS12T
  • MS12T: MS12 (see above) w/ thermal lockout
  • MS13: Supplied w/ threaded connector & light
  • MS13DCLCT: Low current MS13DCT
  • MS13DCT: MS13 (see above), direct current, w/ thermal lockout
  • MS14: Supplied w/ 5 pin Brad Harrison connector & light (male end)
  • MS14DCLCT: Low current MS14DCT
  • MS14DCT: MS14 (see above), direct current, w/ thermal lockout
  • MS16: Electrical w/ weather-packed sealed connector
  • MS16LC: Low current MS16
  • MS16LCT: Low current MS16T
  • MS16T: MS16 (see above) w/ thermal lockout
  • MS17LC: Electrical w/ 4 pin Brad Harrison male connector
  • MS17LCT: Low current MS17T
Additional Options
  • None
  • L: Two 1/4" NPTF inlet and outlet female test ports
