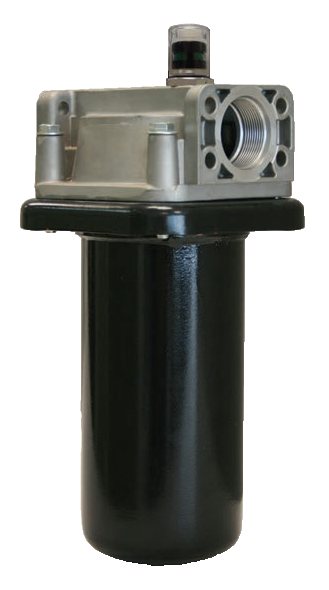

• Return Line Filter GKF3
Features and Benefits
  • HF4 Footprint filter with patented Quality Protection element
  • Offered in pipe, SAE straight thread, flange, and ISO 228 porting
  • Various Dirt Alarm® options
  • Available with NPTF inlet and outlet female test ports
  • Available with magnet inserts
  • Available with housing drain plug
  • Takes the standard “KG” element in KG, KKG or 27KG lengths
  • Allows consolidation of inventoried replacement elements by using KG-size elements

Modify Configuration

Reset Cancel View Results
Item #
Item #
Disclaimer
Please click this link to see Terms and conditions policy.
Filter Series
Bowl Length
  • 1: 9”/18”/27” Bowl with one (1) element
  • 2: 18” Bowl with two (2) 9” elements
  • 3: 27” Bowl with three (3) 9” elements
Element 1
  • KG (9”, 18”, 27” Bowl)
  • KKG (18” Bowl)
  • 27KG (27” Bowl)
Media
  • AS: Anti-Stat Media (Synthetic)
  • E Media (Cellulose)
  • ED: Electric Drive Media
  • W: W Media (water removal)
  • Z: Excellement® Z-Media® (synthetic)
  • ZW: Aqua-Excellement ZW Media
Micron Rating
  • 1: 1µ (Z,ZW Media)
  • 3: 3µ (E,Z,AS,ZW Media)
  • 5: 5µ (Z,AS,ZW Media)
  • 10: 10µ (E,Z,AS,ZW,ED Media)
  • 25: 25µ (E,Z,ZW Media)
Seals
  • Buna
  • V: Viton®
Magnet Option
  • M: Magnet
  • None
Porting
  • P: 1-1/2” NPTF
  • S: SAE-24
  • F: 1-1/2” SAE split 4-bolt flange code 61
  • B: ISO 228G-1-1/2”
Bypass
  • 30 PSI
  • 40: 40 PSI
  • 50: 50 PSI
  • 60: 60 PSI
Indicator
  • None
  • Electrical Indicator
  • Electrical Visual Indicator
  • Visual Indicator
Options
  • 1 Element code can also be used to build a replacement element.
