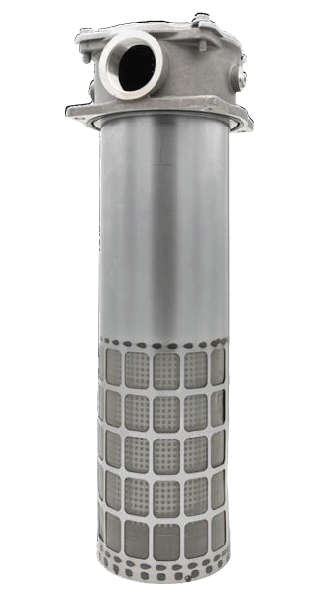

• Return Line Filter TRT
Features and Benefits
  • Filter head is mounted on the tank like standard return-line solution
  • The protective tube can be supplied in various optional versions: 1.) as a closed tube with the outlet opening facing downwards or with a closed base and rows of operating holes at the height of the tank’s oil level 2.) with an optional magnetic core connected to the filter element guaranteeing effective magnetic pre-filtration
  • Patented de-aeration windows around the housing offer superior air bubble coalescence in a 360 degree discharge
  • Quality Protected Inside-Out Flow Element Design
Part of Schroeder Industries’ 2030 Initiative

Modify Configuration

Reset Cancel View Results
Item #
Item #
Disclaimer
Please click this link to see Terms and conditions policy.
Filter Series
Element Length 1
  • 1RT
  • 2RT
  • 3RT
  • 4RT
Media 2
Micron Rating
  • 5: 5µ (Z Media)
  • 10: 10µ (Z Media)
  • 25: 25µ (Z Media)
Seals
  • Buna
  • V: Viton®
Bypass
  • 12: 12 PSID
  • 36 PSID
Magnet
  • None
  • M: Magnetic Core
Inlet Porting
  • G: 1-1/2” BSPP
  • S: G 1-1/2” BSPP, SAE DN 40 (1-1/2”)
  • S24: SAE-24 (requires BSPP to SAE bushing to extend port to port dimensions)
Housing Options
Indicator
  • None
  • VA: Visual/Electrical
  • VE: Electrical
  • VO: Visual Indicator
  • 1 Element code can also be used to build a replacement element.
  • 2 Other media is available upon request.
