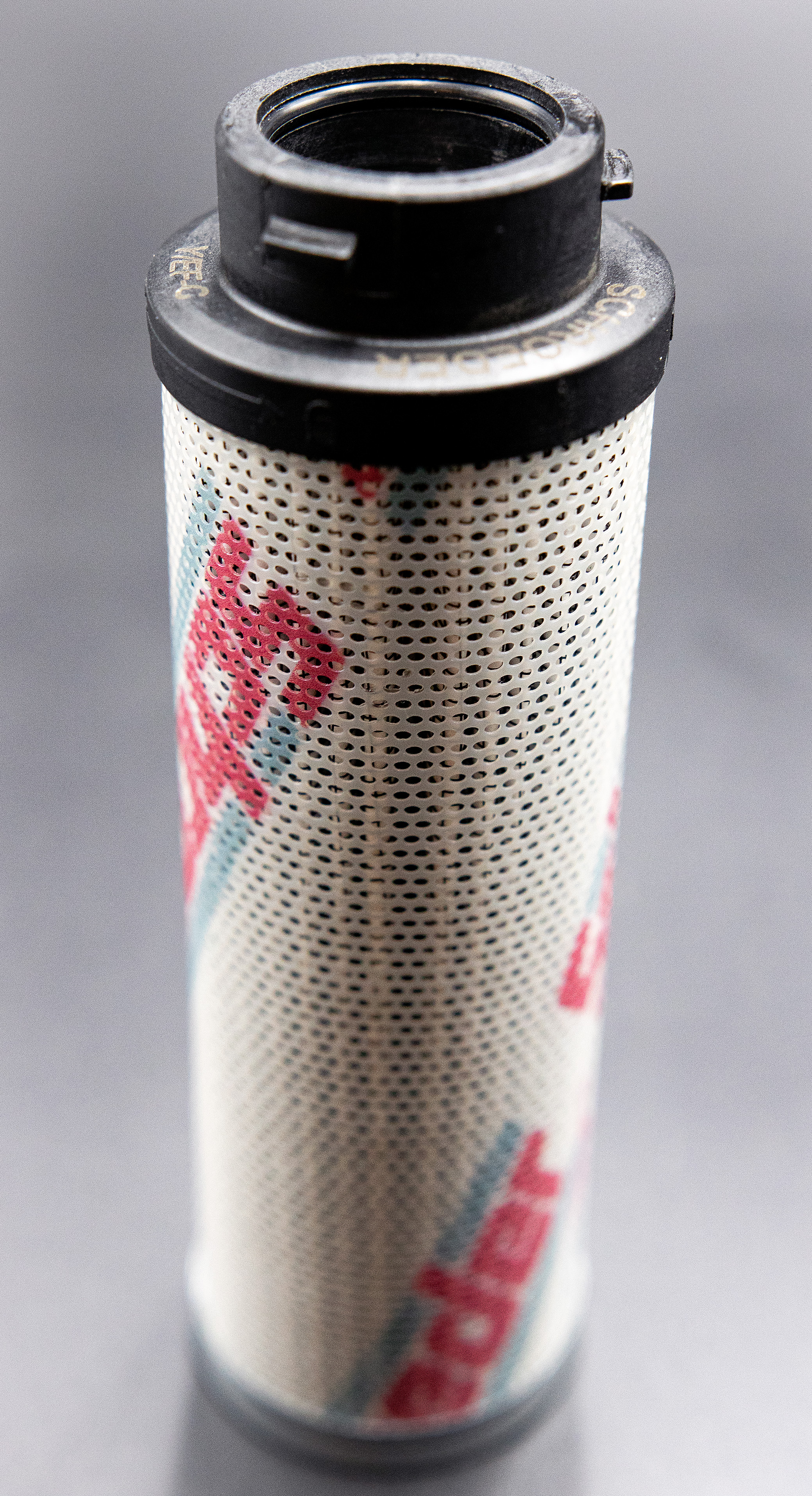

• NLK_Image1
  • Lock & Key Quality Protected Elements
  • Used on the NFLK30 Hydraulic Filter Housing
  • Excellement Z-Media (Synthetic Microglass)
  • Single Length (NLK) and Double Length (NNLK) Elements Available
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

LIST_PRICE

Seal Material

Weight

Operating Temperature [Min]

Operating Temperature [Max]

Efficiency

Filter Rating

Beta Ratio

Element Collapse Pressure

Filter Rating - Beta Ratio

Diameter

Height

Inner Diameter

Add To Cart/Request Quote
N/A NLKZ1,ELEMENT QUOTE N/A Buna N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 107 ºC225 ºF N/A 99.9 % N/A 1 µm N/A 1000 N/A 10.3 bar150 psi N/A 4.2 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ1V,ELEMENT QUOTE N/A Viton N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 121 ºC250 ºF N/A 99.9 % N/A 1 µm N/A 1000 N/A 10.3 bar150 psi N/A 4.2 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ3,ELEMENT QUOTE N/A Buna N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 107 ºC225 ºF N/A 99.9 % N/A 3 µm N/A 1000 N/A 10.3 bar150 psi N/A 4.8 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ3V,ELEMENT QUOTE N/A Viton N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 121 ºC250 ºF N/A 99.9 % N/A 3 µm N/A 1000 N/A 10.3 bar150 psi N/A 4.8 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ5,ELEMENT QUOTE N/A Buna N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 107 ºC225 ºF N/A 99.9 % N/A 5 µm N/A 1000 N/A 10.3 bar150 psi N/A 6.3 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ5V,ELEMENT QUOTE N/A Viton N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 121 ºC250 ºF N/A 99.9 % N/A 5 µm N/A 1000 N/A 10.3 bar150 psi N/A 6.3 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ10,ELEMENT QUOTE N/A Buna N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 107 ºC225 ºF N/A 99.9 % N/A 10 µm N/A 1000 N/A 10.3 bar150 psi N/A 10 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ10V,ELEMENT QUOTE N/A Viton N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 121 ºC250 ºF N/A 99.9 % N/A 10 µm N/A 1000 N/A 10.3 bar150 psi N/A 10 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ25,ELEMENT QUOTE N/A Buna N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 107 ºC225 ºF N/A 99.9 % N/A 25 µm N/A 1000 N/A 10.3 bar150 psi N/A 24 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
N/A NLKZ25V,ELEMENT QUOTE N/A Viton N/A 0.26 kg0.58 lb N/A -29 ºC-20 ºF N/A 121 ºC250 ºF N/A 99.9 % N/A 25 µm N/A 1000 N/A 10.3 bar150 psi N/A 24 N/A 1.8 in46 mm N/A 5.3 in134 mm N/A 0.8 in20 mm Request Quote
